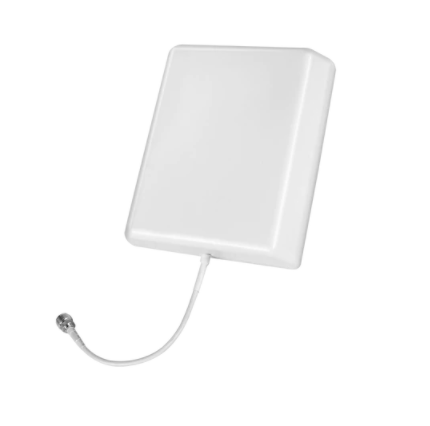

Indoor Directional Panel 8dBi Antenna
1. Product: Indoor Directional Panel Antenna
2. Model: SP-DWA-827-8NF-AL140
Electrical Specifications | ||
Frequency Range | 806-960 MHz | 1710-2700 MHz |
Gain | 6.5 dBi | 8 dBi |
VSWR | ≤1.5 | ≤1.5 |
Polarization | Vertical | |
Front to Back Ration | ≥ 18dB | |
3rd PIM | ≤-140 dBc | |
Horizontal Beamwidth (°) | 90° | |
Vertical Beamwidth (°) | 55° | |
Input Impedance | 50 Ω | |
| 50 W | |
Lightning Protection | DC Ground | |
Mechanical Specifications | ||
Connector | N-Female | |
Weight | 0.4 kg | |
Reflector Material | Aluminum | |
Radome Material | ABS | |
Operating Temperature | -40°C to +65 °C | |
Installation | Wall | |
Note:
We reserves the right to change without notice. Please send us inquiry by email for more details.
