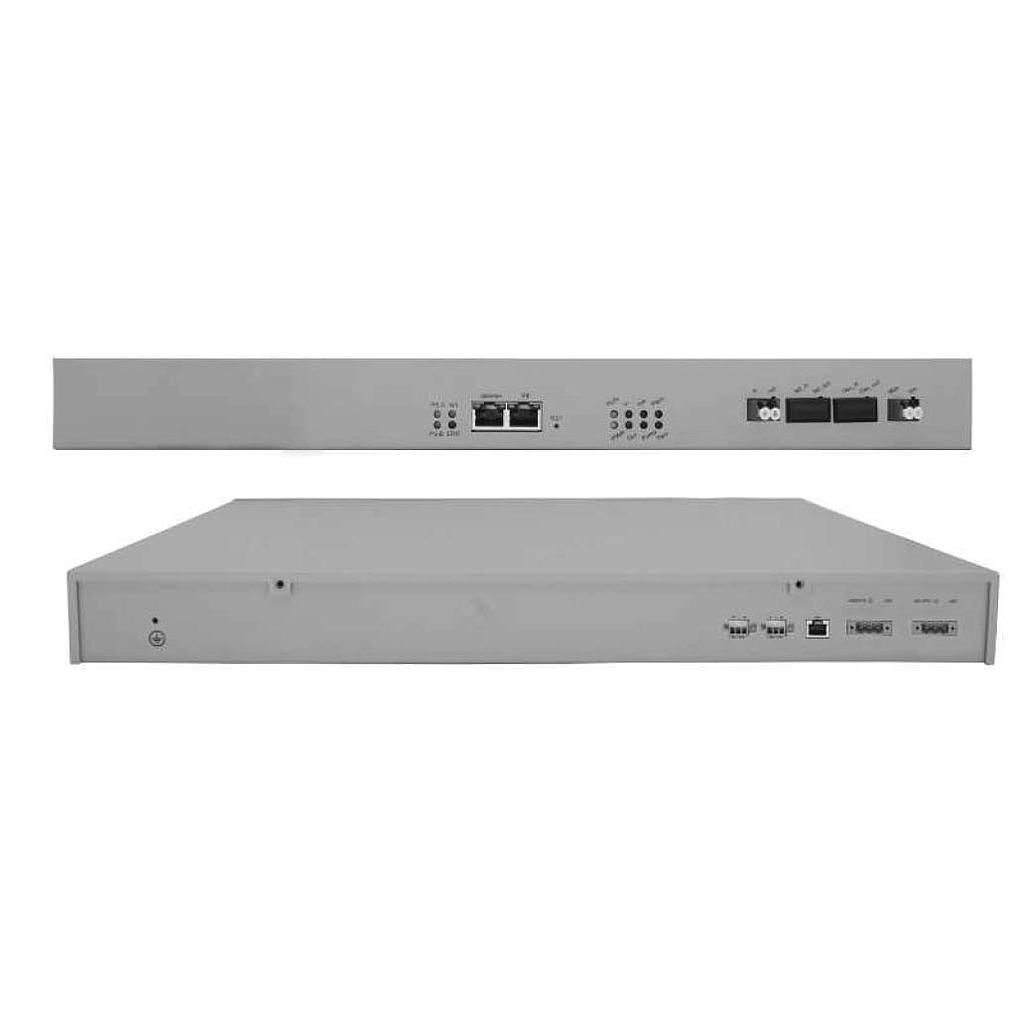

EDFA Transmission Extension
Name: EDFA Transmission Extension
Model: SP-8000FR-OLS-XX
Highlights
|
Paremeter |
Min. |
Typ |
Max. |
Unit |
||
|
Operation Wavelength range(λ) |
1528 |
|
1565 |
nm |
||
|
Input power |
OBA |
-14 |
|
+8 |
dBm |
|
|
OPA |
-28 |
|
-5 |
|||
|
output power |
|
|
23 |
dBm |
||
|
Gain |
|
|
33 |
dB |
||
|
|
5.0 |
|
dB |
|||
|
Gain flatness |
|
1.0 |
|
dB |
||
|
Polarization dependence loss |
|
|
0.3 |
dB |
||
|
Polarization dependence gain |
|
|
0.4 |
dB |
||
|
RL |
45 |
|
|
dB |
||
|
Conditions |
Work temp. |
-10℃ ~ 70℃ |
||||
|
Operating relative humidity |
5%~95% |
|||||
|
Storage temp. |
-40℃ ~ 85℃ |
|||||
|
Power Consume |
<30 |
W |
||||
|
Dimensions (WxHxD) |
26.5（W）× 195（H）× 252（D） |
mm |
||||
Note:
We reserves the right to change without notice. Please send us inquiry by email for more details.
