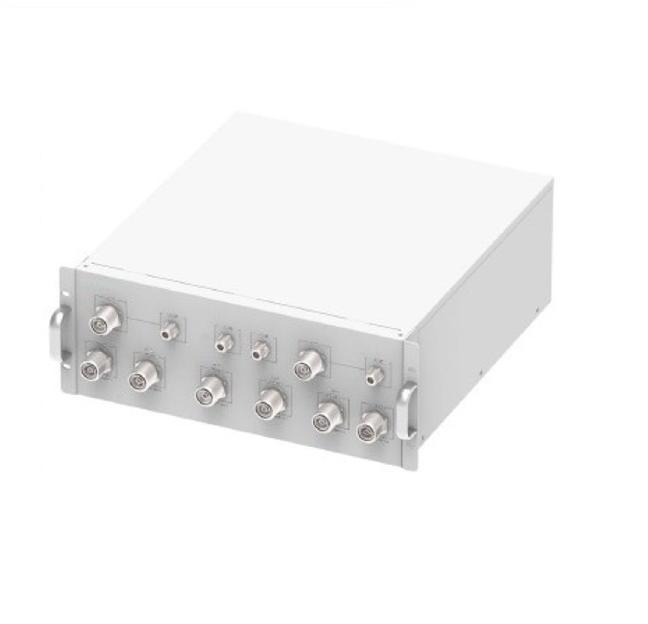

Dual band DCS & WCDMA POI 6 in 1 out
1. Product: Point of Interface
2. Model: SP-POI-1821-6DF2DF-ID194
|
Electrical Specifications |
||||
|
Input port Information (Mhz) |
DCS1800 |
Port 1 |
1710-1730/1805-1825 |
|
|
Port 2 |
1730-1750/1825-1845 |
|||
|
Port 3 |
1750-1785/1845-1880 |
|||
|
UMTS 2100 |
Port 1 |
1920-1935/2110-2125 |
||
|
Port 2 |
1935-1965/2125-2155 |
|||
|
Port 3 |
1965-1980/2155-2170 |
|||
|
Insertion Loss (dB) |
≤ 5.0 |
|||
|
Isolation Between Bands (dB) |
≥ 28 |
|||
|
Isolation Cross Bands (dB) |
≥ 80 |
|||
|
Return Loss (dB) |
≥ 18 |
|||
|
Max Input Per Power (W) |
100 |
|||
|
Intermodulation Products (dBc) |
≤ -150 @2 x 43dBm |
|||
|
Impedance |
50 Ω |
|||
|
Mechanical Specifications |
||||
|
RF Connector |
Input Port |
6 x 7/16” DIN-Female |
||
|
Output Port |
2 x 7/16” DIN-Female |
|||
|
Monitoring Port |
2 x N-Female |
|||
|
Dimension , L x W x H (mm) |
310 x 450 x 210 |
|||
|
Weight (kg) |
18 kg |
|||
|
Mounting |
19”Rack |
|||
|
Operating Temperature (°C) |
-10°C to +60 °C |
|||
|
Operational Humidity (%) |
< 95 |
|||
|
Enviromental Class |
Indoor |
|||
We reserves the right to change without notice. Please send us inquiry by email for more details.
